Start here / A300

Pick the path first.

An industrial telematics gateway for powered equipment where location is the beginning of the conversation, not the end.

Follow the checks Discuss pricing

A300 is an industrial telematics gateway. The machine, field map and receiving platform are checked together before a project decision.

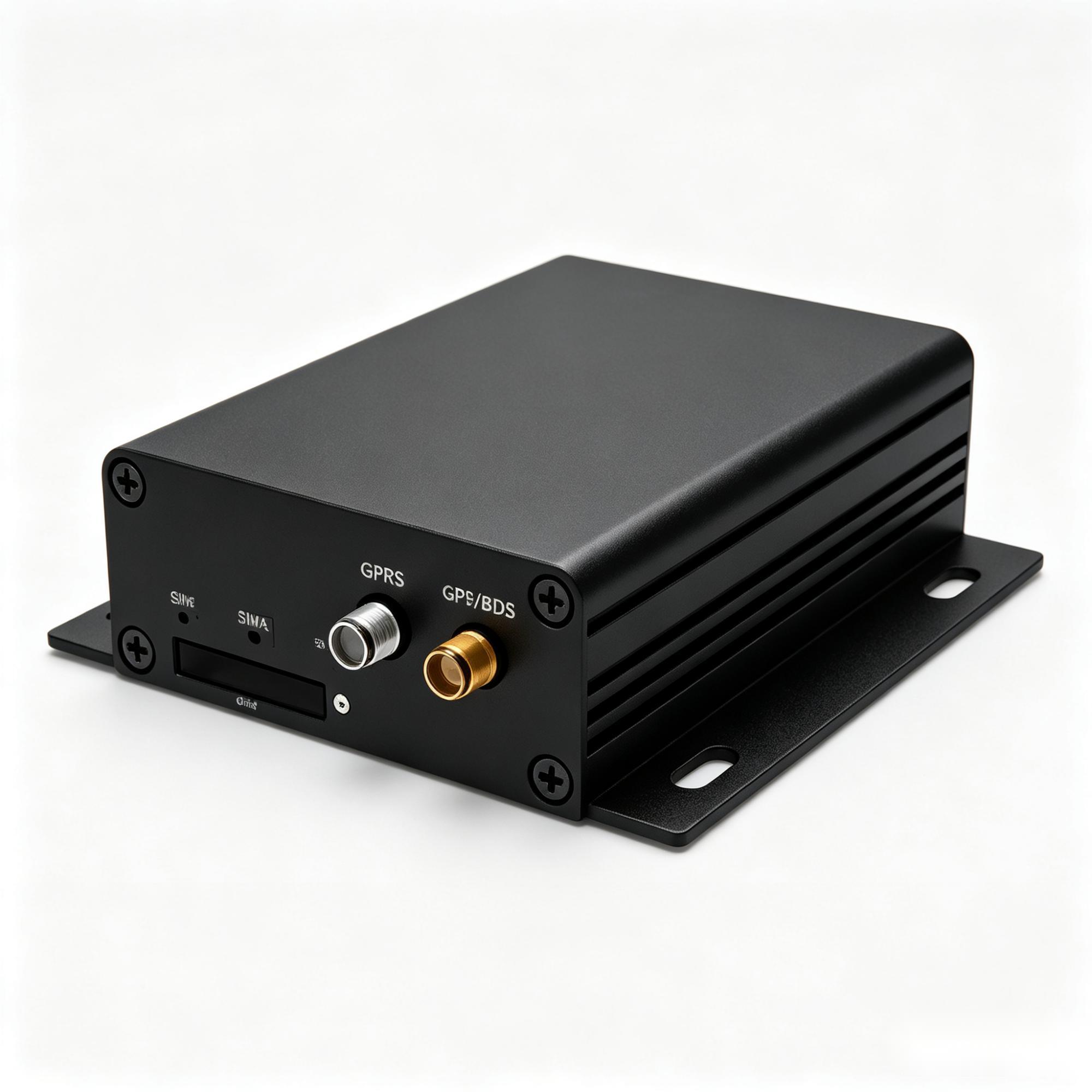

A300 industrial telematics gateway with external antenna connection — **A300**Industrial telematics gateway

01 / When to choose

Does the equipment need an answer beyond location?

Start with the operation. Use the technical list only after the fit is clear.

Choose A300 when the machine has data to bring into the project.

Powered excavators, agricultural machinery or mining equipment are in scope.
CAN / J1939 is part of the data question.
4G CAT1 and GPS / BeiDou should sit in the same record.
RS485, RS232 or TTL belongs in the agreed wiring path.

Pause / compare

Keep looking when location is the whole brief.

Unpowered assets and battery-first deployments need a different starting point. A gateway is not the answer to every tracking question.

Selection is a project decision

02 / Daily answers

Turn the workday into three clear questions.

The page follows the team from the yard to the receiving platform.

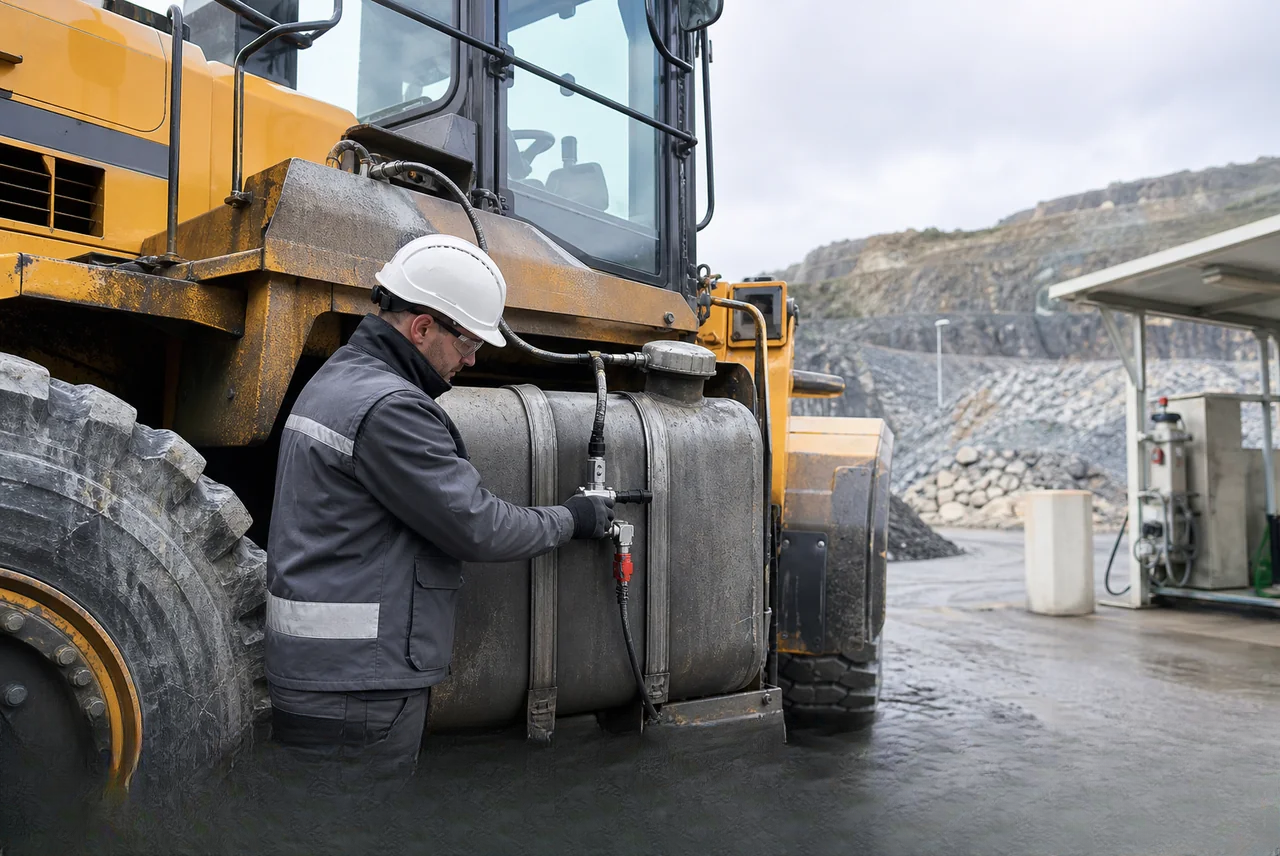

Technician checking a construction vehicle connection in a quarry

01 / LOCATE

Where is the machine?

GPS / BeiDou positioning gives the starting record to review.

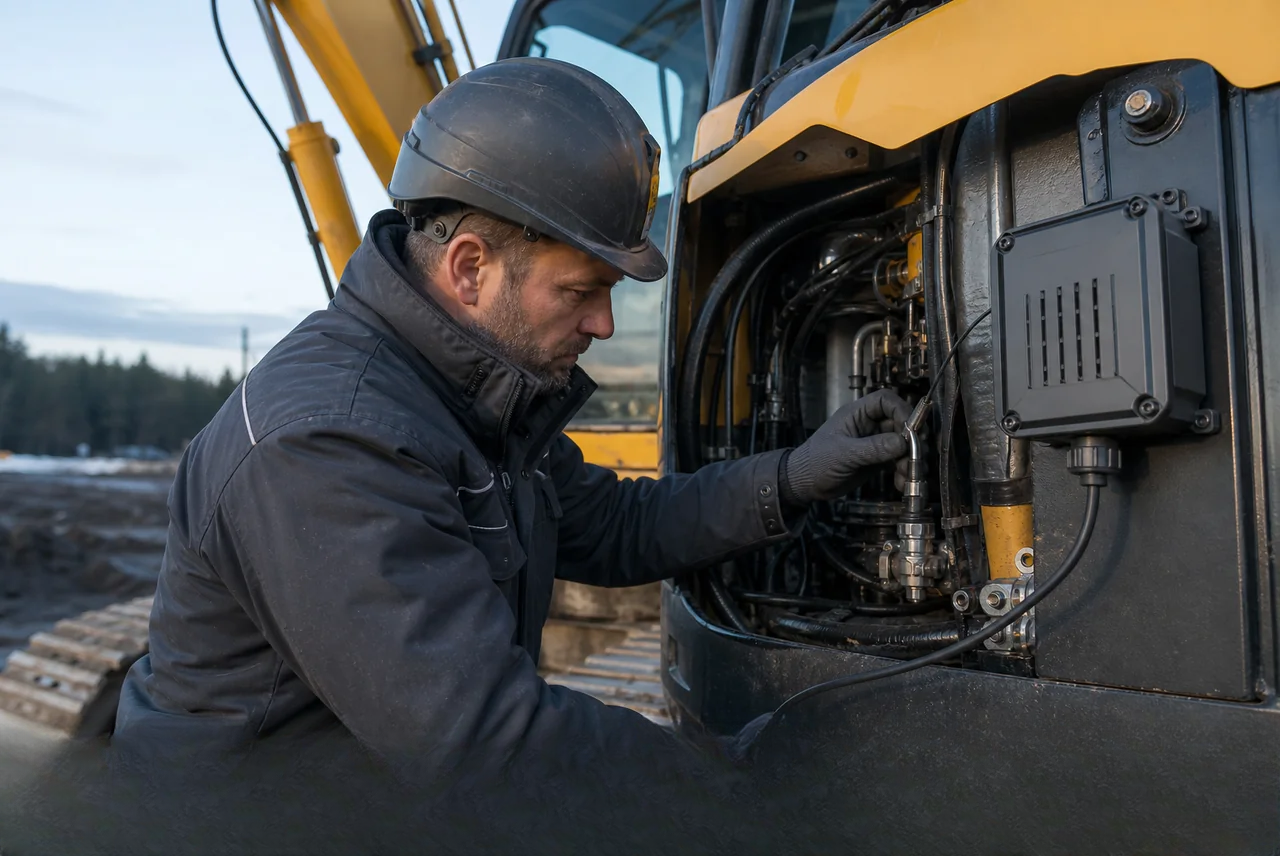

Technician inspecting a machine-side connection in protective workwear

02 / READ

What did the equipment report?

CAN / J1939 fields are checked against the exact machine.

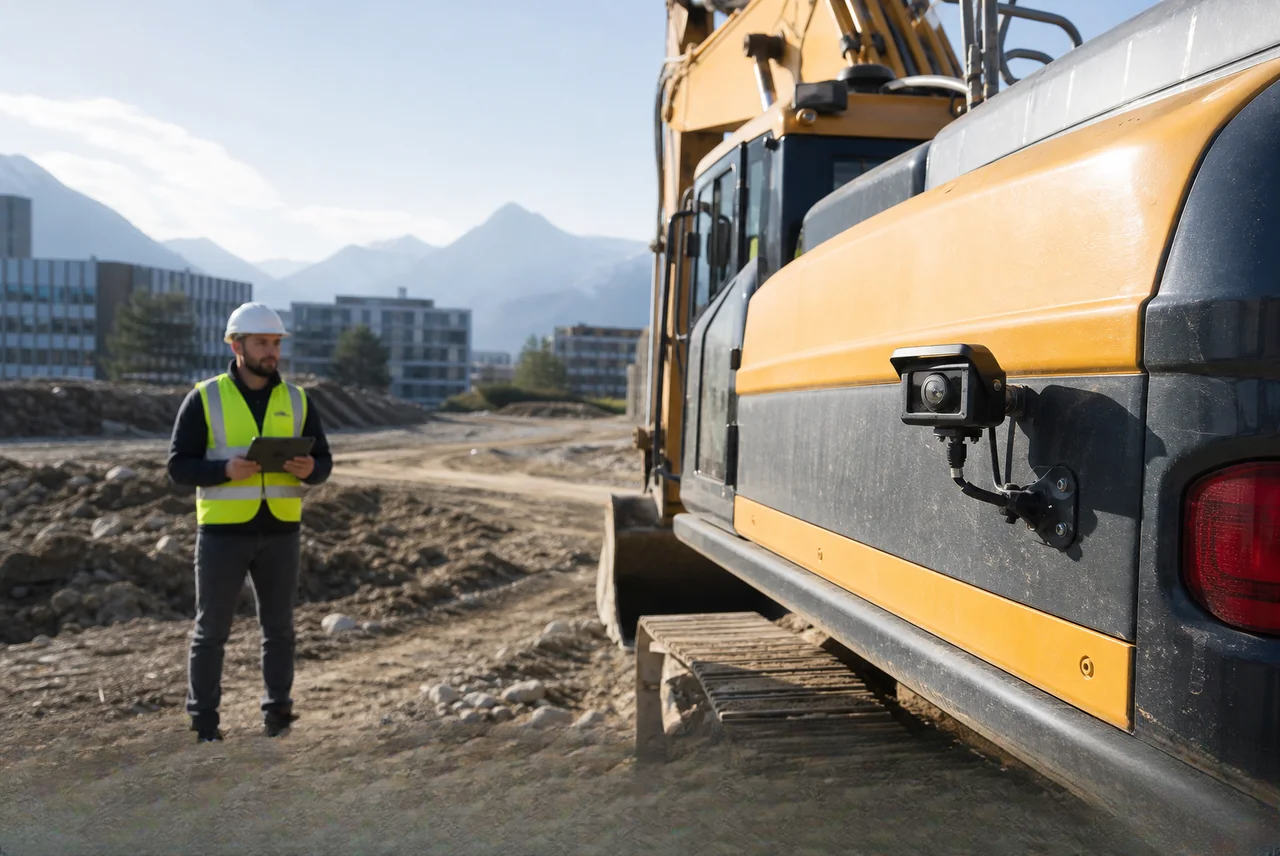

Construction-site worker reviewing an excavator beside a mounted camera

03 / DELIVER

Where should the record arrive?

Protocol, fields and receiving platform are confirmed within the project.

Line of construction machines ready in an equipment yard — 03 / Technical support follows the site question, not the other way around.

03 / Technical support

The useful details, kept close to the decision.

The listed interface set is the start of a project check. It is not a promise that every field appears on every machine.

4G CAT14G CAT1 connectivity

GPS / BeiDouGPS / BeiDou positioning

CAN / J1939Machine interface to verify

RS485 / RS232 / TTLWired interface options

IP67 aluminiumHousing and mounting check

OTAFirmware path to confirm

Platform connection depends on the selected protocol, fields and receiving system and is confirmed per project.

Before ordering

Open the conditions that can change the answer.

Check RTCM 3.x, voltage and destination-market requirements before order.

Agricultural tractor working across a field under open sky — RTCM 3.x can be considered when the project conditions are in place.

01RTCM 3.x / option path+

A correction service, suitable antenna, environment and receiving platform are required. Confirm accuracy with a sample in the intended installation environment.

02Power supply / version check+

Confirm the operating voltage range, power supply and protection for the exact hardware version before ordering.

03Destination-market documents+

Confirm the required destination-market marks and exact A300 model coverage before ordering, with the relevant manufacturer-issued documents.

PRODUCT DETAILS

Specifications & order checks

Review the listed features and the points to confirm for the exact configuration, destination market and receiving platform.

Cellular: Verified4G LTE Cat-1. Band configuration for the destination market is confirmed with the manufacturer before order.
Protocol: VerifiedTCP; NMEA-0183; RTCM 3.x; optional transparent data pass-through. Server address can be set by domain or IP.
Platform integration: On requestWe have no hosted-platform deployment record for this model. Platforms ask for three things — device name, manufacturer reference and protocol documentation. We can supply those and submit the integration request with you.
Certification: On requestNo certificate on file lists A300 by name. Compliance documents are issued by the manufacturer per model and checked against the exact model number, radio module and antenna before quotation.
GNSS: VerifiedGPS / BeiDou. RTK and inertial navigation are datasheet options and need project confirmation — accuracy also depends on the correction service, antenna and environment.
Interfaces: VerifiedDual CAN, one channel J1939 by default; RS485; RS232; TTL; spare IO. LIN and TTS are listed as options.
Power: VerifiedOperating voltage is confirmed against the exact hardware version before order. Include the machine supply and installation conditions in your brief.
Enclosure: VerifiedIP67 aluminium housing, external antenna.
Firmware / FOTA: VerifiedOTA supported. Update method, trigger and rollback behaviour are confirmed for the project before order.
Traceability: On requestIMEI and serial list supplied with the shipment. The firmware build is recorded per purchase order and kept consistent within that order; a protocol or hardware change is notified before it ships. Batch and production records on request.
Commercial terms: Samples and small pilots available. Customisation typically from 100 units. 12-month limited warranty from the commercial-invoice shipment date; DOA terms confirmed in the quote.
Where it fits / where it doesn't: Powered excavators, agricultural and mining machines, generators and special vehicles where the project needs CAN / J1939 machine data, not just a position. Not for unpowered trailers or containers that need long battery life — see the no-fixed-power guidance.

How to read these labels. Verified stated in the manufacturer’s datasheet and checked page by page against the original document — not our own measurement. Series a document on file covers the series but does not list this exact model number. On request not stated in the material we hold; confirmed per model with the manufacturer before quotation. Not held required in that market and not currently held. We would rather show you a gap than describe it vaguely.

RTCM 3.x in context. RTCM 3.x is useful for high-precision positioning scenarios when a suitable correction service, antenna, environment and platform are in place. A300 can use this option under those conditions; terminal accuracy still depends on the correction service, antenna, environment and receiving platform.

04 / Before order

A guided installation conversation.

The sample is where mounting, power, field mapping and the receiving platform become one check.

Name the equipment

Confirm the machine type, fixed-power situation and installation point.

Name the fields

Check CAN / J1939 coverage and the interfaces the project will use.

Name the destination

Verify protocol, fields and receiving platform within the project.

What to confirm

Keep voltage, market marks and exact model coverage open until order confirmation.

Commercial starting point

Start small enough to learn.

Samples and small pilots keep the first conversation tied to the real equipment.

Samples and small pilots availableCustomisation typically from 100 units12-month limited warranty from commercial-invoice shipment date

FAQ / A300

Keep the next question obvious.

Talk through fit

When should we pause on A300?

Pause when the asset has no fixed power, or when the project only needs a basic location record with no machine field to validate.

Is the A300 already connected to a platform?

Platform connection depends on the selected protocol, fields and receiving system and is confirmed per project.

What does the RTK option require?

RTCM 3.x is an available option when a correction service, suitable antenna, environment and receiving platform are in place; terminal accuracy still depends on those conditions.

What commercial starting point is available?

Samples and small pilots are available. Customisation typically starts from 100 units, and the limited warranty is 12 months from the commercial-invoice shipment date.

05 / Project inquiry

Tell us what the machine must explain.

Share the equipment, the question beyond location and the receiving platform you have in mind. We will reply with the checks still open.

Review the A300 FAQ

Ready to discuss the exact A300 configuration, market and quantity?

Discuss A300 pricing
