Start here / GT76

Make unpowered assets easier to find.

A magnetic battery tracker for trailers, containers and temporary assets where fixed power is unavailable and periodic visibility is enough.

Follow the checks Discuss pricing

GT76 is a magnetic battery tracker. Asset surface, magnetic mounting, reporting cadence and the receiving platform are checked together before a project decision.

GT76 magnetic battery asset tracker — **GT76**Magnetic battery asset tracker

01 / When to choose

Does the asset need periodic visibility without fixed power?

Start with the asset and mounting surface. The reporting cadence and battery plan are one project decision, not a runtime calculation.

Choose GT76 when the asset cannot rely on permanent wiring.

Trailers, containers, temporary plant or yard assets are in scope.
Magnetic deployment avoids a permanent harness at the first installation.
Movement or geofence exceptions matter more than a continuous feed.
The battery variant and reporting cadence can be planned together.

Pause / compare

Pause when the asset or data question changes.

GT76 is a battery asset tracker for periodic visibility. Permanently powered machine data, exposed wired installation or risk-control actions need a different project starting point.

Selection is a project decision

02 / Daily answers

Turn the workday into three clear questions.

The page follows an unpowered asset from its last report to the cadence and battery decision that keeps the record useful.

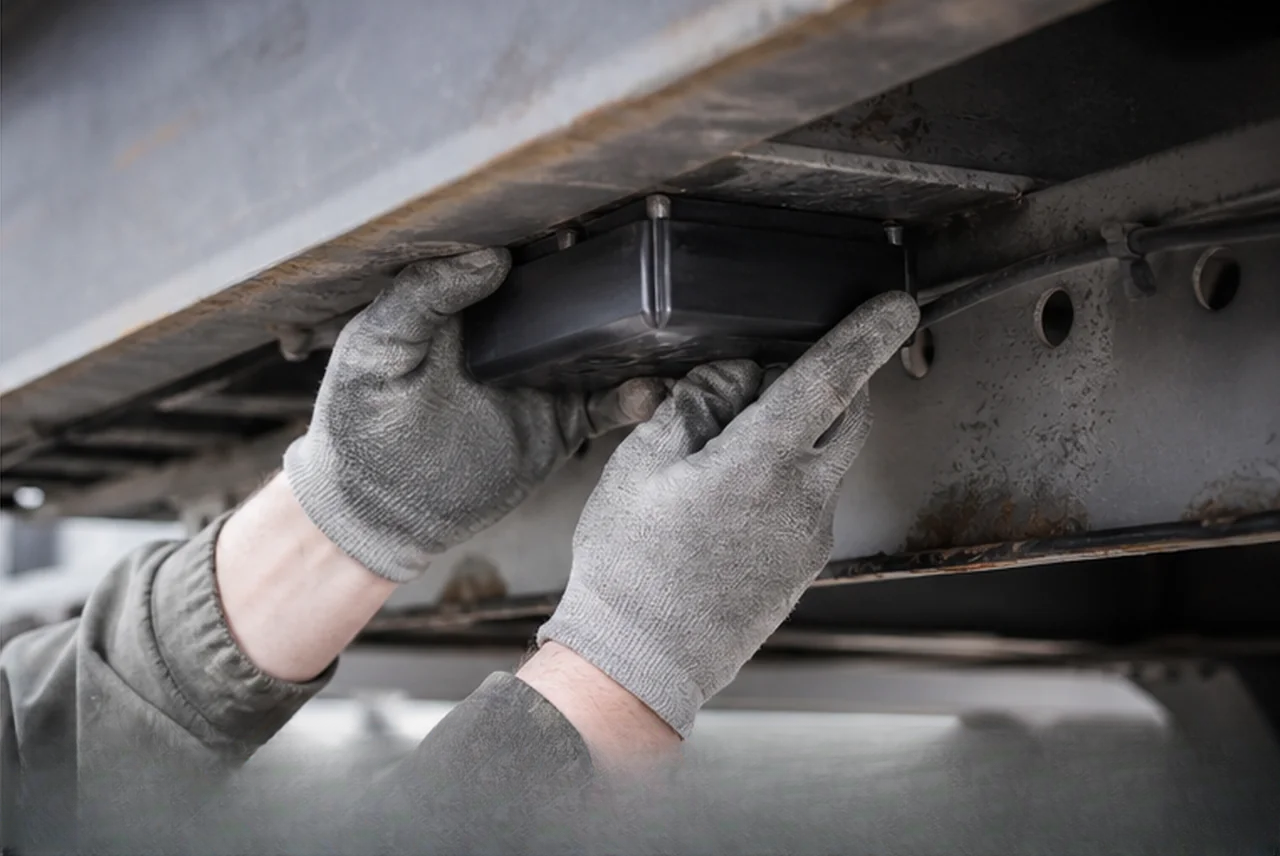

Technician placing a magnetic asset tracker on a trailer surface

01 / DEPLOY

Where was the asset last reported?

GPS / BDS / AGPS / LBS gives the latest location record to review.

Asset movement exception being reviewed after a magnetic deployment

02 / REVIEW

Did it move or cross a geofence?

Movement and geofence events become the review points for a trailer, container or yard asset.

03 / PLAN

Does the cadence fit the battery plan?

6000, 10000 and 20000mAh variants are planned with cadence, network and environment; no runtime is calculated here.

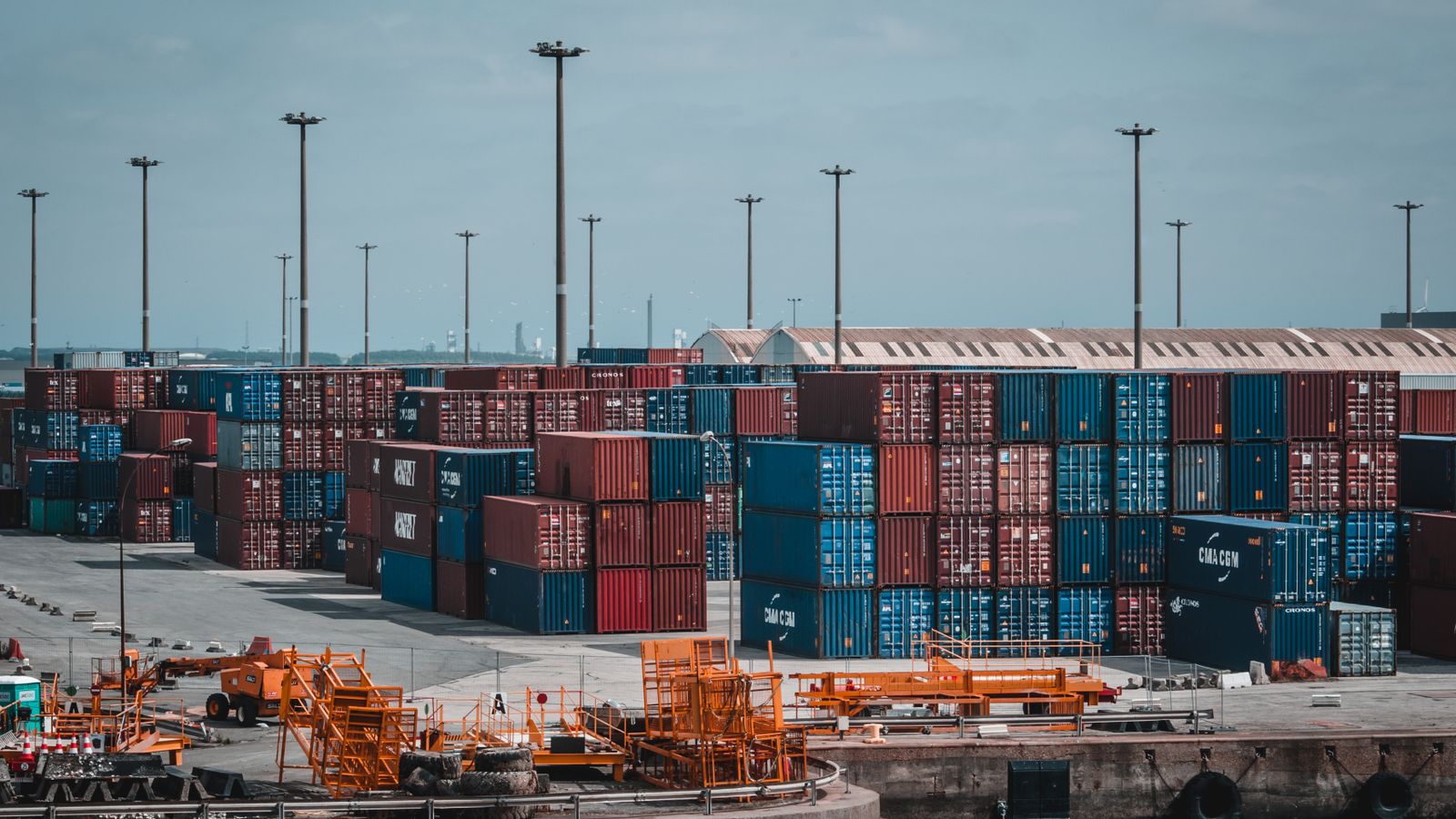

Container yard team checking a magnetic asset deployment — 03 / Technical support keeps the no-fixed-power trade-off visible.

03 / Technical support

Keep the battery plan close to the asset decision.

GT76 is a magnetic, periodic-reporting option. Capacity, cadence, network and environment are reviewed together rather than turned into a guessed runtime.

CAT1Market and band configuration to confirm

GPS / BDS / AGPS / LBSGPS / BDS / AGPS / LBS positioning

Magnetic mountingSurface and vibration to check

6000 / 10000 / 20000 mAhCapacity variants to confirm

IP65 enclosureInstallation and exposure boundary

Movement / geofence / low batteryEvent questions to check

Platform connection depends on the selected protocol, fields and receiving system and is confirmed per project.

Before ordering

Open the conditions before the asset enters a pilot.

Check capacity, mounting and periodic-reporting requirements before order.

Port container yard where a magnetic asset tracker may be checked — Capacity is a planning input, not a published runtime.

01Capacity is not runtime+

6000/10000/20000mAh options must be reviewed with cadence, network, temperature and exact version. Battery capacity alone does not determine operating time; confirm the reporting plan on a sample.

02IP65 and magnetic surface check+

Confirm the surface, magnetic hold, vibration, rain and retrieval plan with the sample.

03Periodic reporting / platform request+

Exact protocol, reporting fields and receiving route remain project checks.

PRODUCT DETAILS

Specifications & order checks

Review the listed features and the points to confirm for the exact configuration, destination market and receiving platform.

Cellular: Verified4G LTE Cat-1.
Protocol: On requestNot stated in the material we hold; requested from the manufacturer per firmware build.
Platform integration: On requestWe have no hosted-platform deployment record for this model. Platforms ask for three things — device name, manufacturer reference and protocol documentation. We can supply those and submit the integration request with you.
Certification: On requestNo certificate on file lists GT76 by name. Compliance documents are issued by the manufacturer per model and checked against the exact model number, radio module and antenna before quotation.
GNSS: VerifiedGPS / BeiDou with AGPS and LBS.
Interfaces: On requestNo external interface or sensor expansion is listed. Share any sensor the project needs rather than assuming another model’s capability.
Power: VerifiedBattery only — 6000 / 10000 / 20000 mAh variants. On requestBattery capacity does not equal runtime. Operating life depends on the reporting interval and temperature, and we will not publish a figure we have not seen tested for your reporting plan.
Enclosure: VerifiedIP65, magnetic mount, 121 × 65 × 27–48 mm depending on battery variant.
Firmware / FOTA: On requestNot stated in the material we hold. If remote updates matter, the update method, trigger and rollback behaviour are confirmed before order.
Traceability: On requestIMEI and serial list supplied with the shipment. The firmware build is recorded per purchase order and kept consistent within that order; a protocol or hardware change is notified before it ships. Batch and production records on request.
Commercial terms: Samples and small pilots available. Customisation typically from 100 units. 12-month limited warranty from the commercial-invoice shipment date; DOA terms confirmed in the quote.
Where it fits / where it doesn't: Trailers, containers, cargo and temporary assets with no fixed power, where periodic position and geofence alerts are enough. Not a live feed, not a machine-data gateway.

How to read these labels. Verified stated in the manufacturer’s datasheet and checked page by page against the original document — not our own measurement. Series a document on file covers the series but does not list this exact model number. On request not stated in the material we hold; confirmed per model with the manufacturer before quotation. Not held required in that market and not currently held. We would rather show you a gap than describe it vaguely.

04 / Before order

A guided unpowered-asset conversation.

The sample is where the asset, surface, magnetic hold, reporting cadence and receiving platform become one check.

Name the asset

Confirm the trailer, container, temporary plant, generator or yard asset.

Name the surface

Check magnetic hold, vibration, rain, dust, heat and the retrieval or tamper plan.

Name the cadence

Agree movement, geofence and reporting questions with the battery variant and platform.

What to confirm

Keep protocol, FOTA, traceability, market marks and quote terms open until order.

Commercial starting point

Start small enough to learn.

Samples and small pilots keep the first conversation tied to the actual asset, surface and reporting plan.

Samples and small pilots availableCustomisation typically from 100 units12-month limited warranty from commercial-invoice shipment date

FAQ / GT76

Keep the next unpowered-asset question obvious.

Talk through fit

How long will the battery last?

The current page does not publish a runtime. Capacity, reporting cadence, network and environment are confirmed together.

Is GT76 a continuous location feed?

It is a periodic-reporting option. Choose it when the asset question can be answered by the agreed cadence and movement exceptions.

Will the magnet work on every surface?

Magnetic hold, vibration and retrieval depend on the sample asset and surface.

Can it report from any remote area?

Cellular coverage and reporting cadence depend on the operator, environment and destination project.

05 / Project inquiry

Tell us what the unpowered asset must answer.

Share the asset, no-power condition, mounting surface, reporting cadence, target market and quantity. We will reply with the checks still open.

Review the GT76 FAQ

Ready to discuss the exact GT76 configuration, market and quantity?

Discuss GT76 pricing
