Start here / C003F

Keep an expandable fleet baseline in view.

A multi-interface fleet terminal for ordinary logistics, rental and mixed fleets that may need project-selected peripherals.

Follow the checksDiscuss pricing

C003F is a multi-interface fleet terminal. Vehicle mix, optional wiring and the receiving platform are checked together before a project decision.

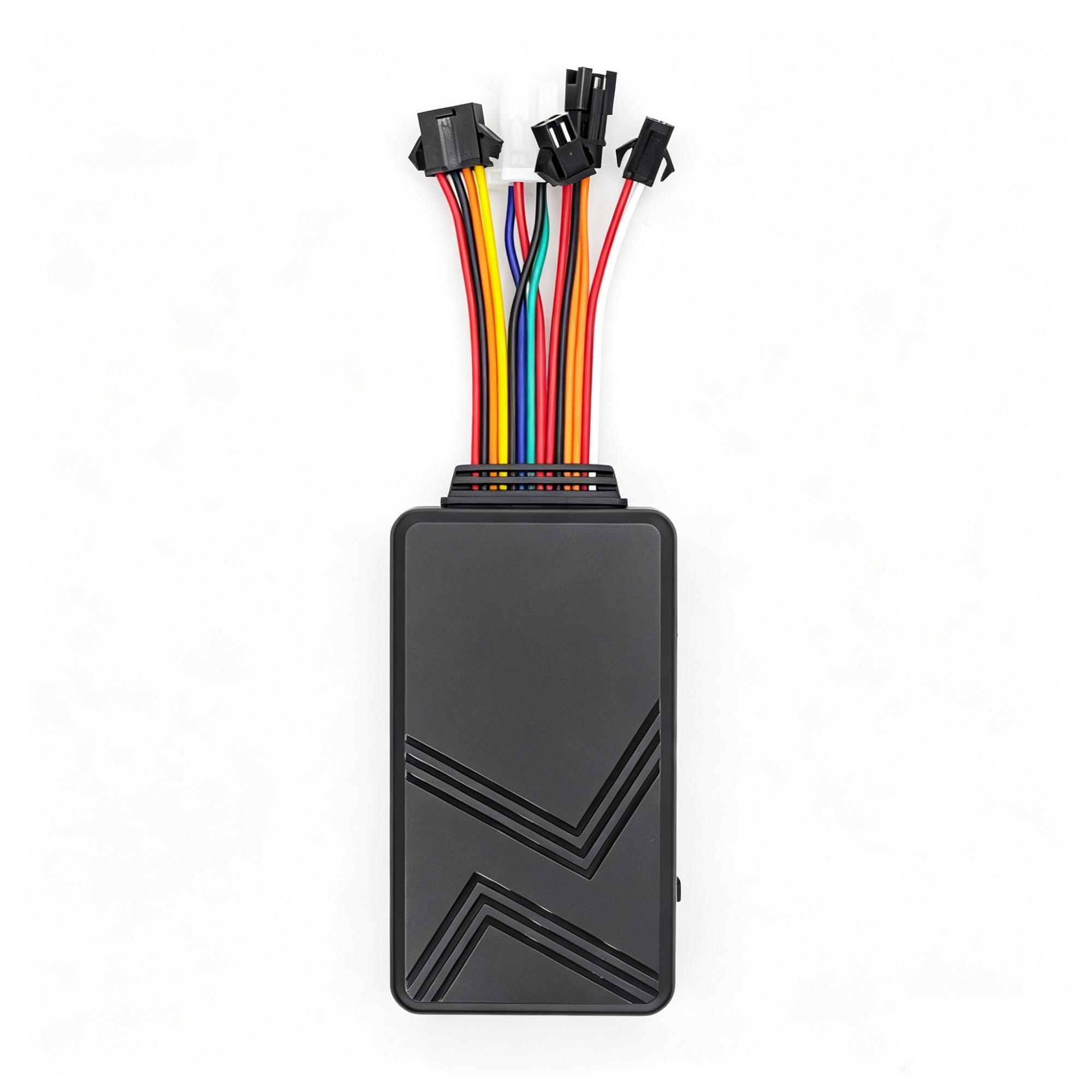

C003F expandable fleet terminal with wiring and peripheral options
C003FExpandable fleet terminal

01 / When to choose

Does the fleet need a baseline with room for selected peripherals?

Start with the fleet and the daily question. Add only the optional paths that the project can wire and verify.

Choose C003F when a protected fleet needs measured expansion.

  • Road, yard, rental or mixed fleets are in scope.
  • Location, power, SOS and ignition questions need one wired baseline.
  • iButton, temperature, fuel or camera may be selected after project review.
  • A protected installation point can accommodate the agreed harness.
Pause / compare

Pause when exposure or machine data leads the brief.

C003F is for a protected fleet installation with project-selected peripherals. It is not the product to choose for a sealed outdoor requirement or a machine-data gateway.

Selection is a project decision

02 / Daily answers

Turn the workday into three clear questions.

The page follows an ordinary fleet from the first location record to the optional signal that still needs a wiring check.

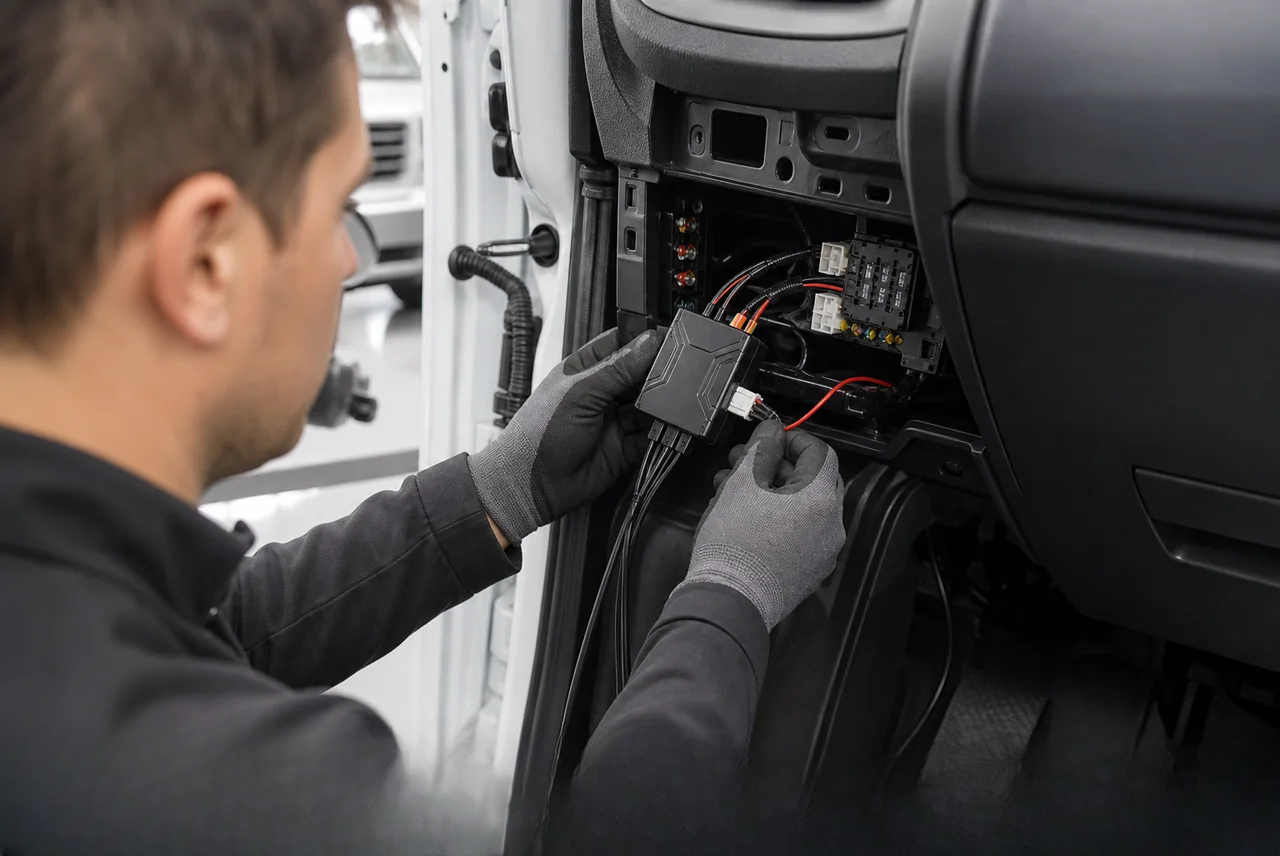

Vehicle technician checking an ignition input during a fleet installation
01 / LOCATE

Where did the vehicle go?

Location, route history and geofence questions form the ordinary fleet record.

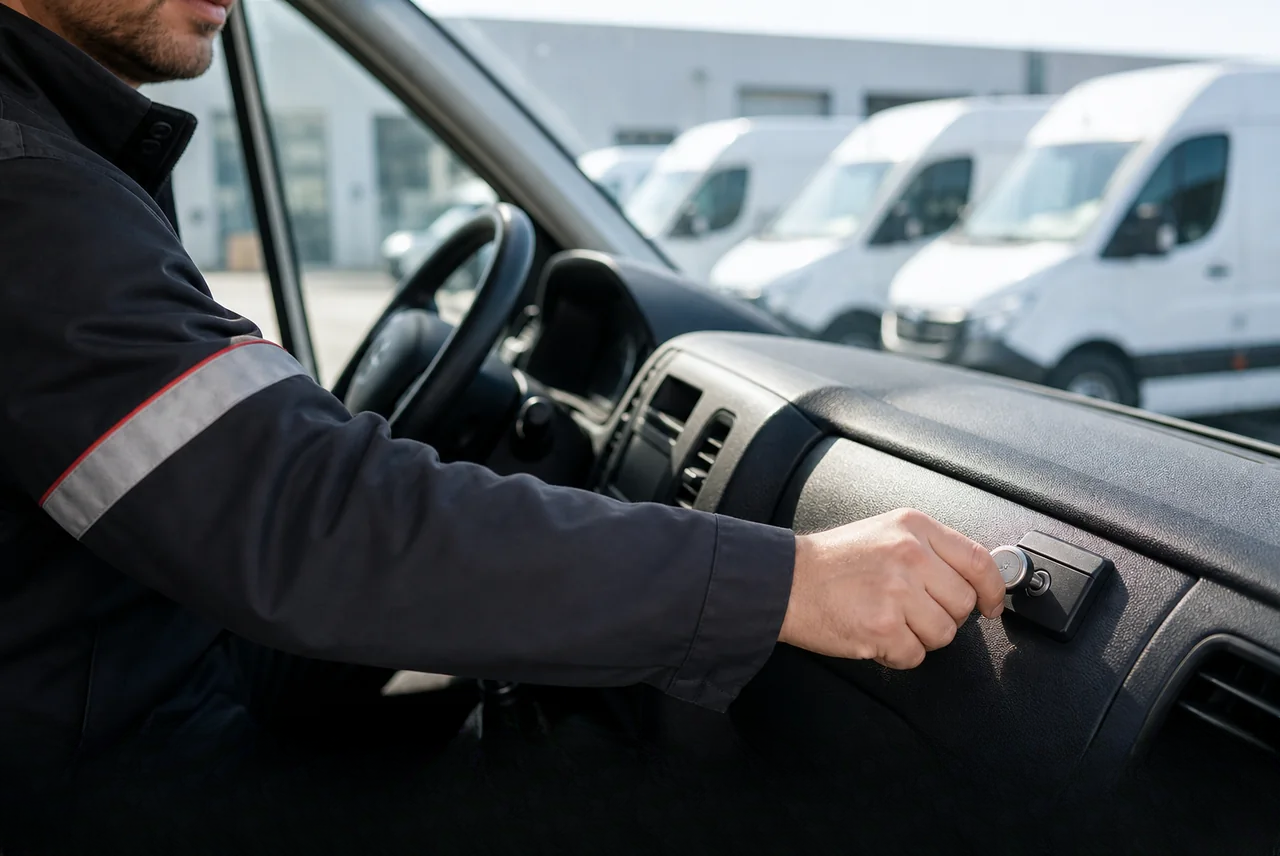

Driver using an optional identification input beside a fleet vehicle
02 / IDENTIFY

Who started the trip?

iButton or another driver-identification path is selected and confirmed per project.

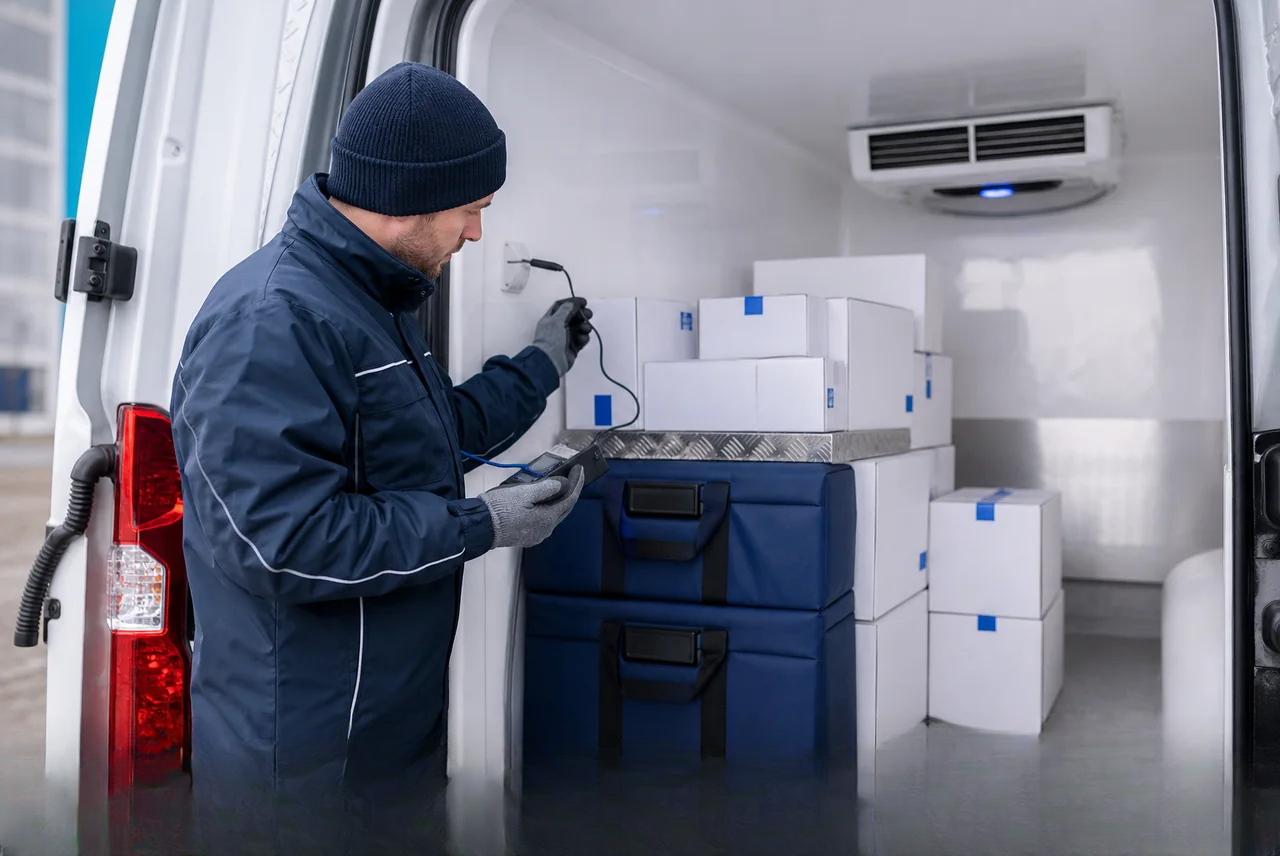

Temperature check being considered for a protected cargo vehicle
03 / EXTEND

Which optional field matters?

Temperature, fuel, camera and other peripherals are chosen one at a time; they are not default configuration.

Cold-chain vehicle being prepared for a protected fleet installation
03 / Technical support keeps optional wiring tied to a real fleet question.

03 / Technical support

Keep the useful details close to the fleet decision.

C003F is a protected fleet terminal with optional expansion. The list below separates listed connections from project-selected peripherals.

4G CAT1Cellular configuration to confirm
GPS / BDS / AGPS / LBSGPS / BDS / AGPS / LBS positioning
9–95 V wiredVehicle supply to check
Relay / SOS / ACC / 1-WireCore event and input paths
Optional RS232 / RS485Harness and peripheral choice
Optional camera / fuel / ID / temperatureEach path needs project confirmation

Platform connection depends on the selected protocol, fields and receiving system and is confirmed per project.

Before ordering

Open the conditions before the fleet enters a pilot.

Check optional wiring, protected installation and destination-market requirements before order.

Fleet vehicle handover being reviewed beside a van
An optional peripheral is a project choice, not a default promise.
01Optional interfaces need a wiring list+
RS232/RS485, camera, fuel, iButton and temperature paths are selected and confirmed against the exact harness.
02Protected installation until enclosure check+
Protected installation only unless the exact enclosure rating and mounting conditions are confirmed.
03Destination-market documents+
Destination marks and exact C003F model coverage are requested and checked before order.
PRODUCT DETAILS

Specifications & order checks

Review the listed features and the points to confirm for the exact configuration, destination market and receiving platform.

Cellular
Verified4G LTE Cat-1. Bands confirmed per destination market.
Protocol
On requestNot stated in the material we hold; requested from the manufacturer per firmware build.
Platform integration
On requestWe have no hosted-platform deployment record for this model. Platforms ask for three things — device name, manufacturer reference and protocol documentation. We can supply those and submit the integration request with you.
Certification
SeriesThe CE, CCC and RoHS documents on file list basic model C003 and related AK-series models. C003F is not listed by name in any of them. We do not treat C003 and C003F as the same hardware until the manufacturer confirms module, antenna and power configuration in writing.
GNSS
VerifiedGPS / BeiDou with AGPS and LBS.
Interfaces
VerifiedRelay output, SOS, ACC and 1-Wire. RS232 / RS485 optional; camera, fuel sensor, iButton and temperature probe are listed options.
Power
Verified9–95 V DC wired supply, optional 180 mAh backup battery.
Enclosure
Verified99 × 54 × 16.5 mm. No ingress rating is stated — protected in-vehicle mounting only; for exposed positions compare A700 or GT02.
Firmware / FOTA
On requestNot stated in the material we hold. If remote updates matter, the update method, trigger and rollback behaviour are confirmed before order.
Traceability
On requestIMEI and serial list supplied with the shipment. The firmware build is recorded per purchase order and kept consistent within that order; a protocol or hardware change is notified before it ships. Batch and production records on request.
Commercial terms
Samples and small pilots available. Customisation typically from 100 units. 12-month limited warranty from the commercial-invoice shipment date; DOA terms confirmed in the quote.
Where it fits / where it doesn't
Fleet and rental work with protected installation where peripherals matter more than sealing. Not a sealed outdoor unit and not a machine-data gateway.

How to read these labels. Verified stated in the manufacturer’s datasheet and checked page by page against the original document — not our own measurement. Series a document on file covers the series but does not list this exact model number. On request not stated in the material we hold; confirmed per model with the manufacturer before quotation. Not held required in that market and not currently held. We would rather show you a gap than describe it vaguely.

04 / Before order

A guided expandable-fleet conversation.

The sample is where fleet mix, power, optional signals and the receiving platform become one check.

01

Name the fleet

List the road, yard, rental or mixed vehicles and the protected installation point.

02

Name the wiring

Check 9–95 V, ACC, SOS, relay and every optional peripheral in the harness.

03

Name the destination

Agree protocol, fields, reporting question and receiving platform within the project.

04

What to confirm

Keep enclosure, market marks, FOTA and traceability open until order confirmation.

Commercial starting point

Start small enough to learn.

Samples and small pilots keep the first conversation tied to the real fleet and selected wiring.

Samples and small pilots availableCustomisation typically from 100 units12-month limited warranty from commercial-invoice shipment date

FAQ / C003F

Keep the next fleet-expansion question obvious.

Talk through fit
Which peripherals are standard?

Camera, fuel, iButton and temperature paths are optional and project-confirmed, not a default configuration.

C003F or A700 — which installation comes first?

C003F starts with protected fleet installation and selected peripherals. A700 is the outdoor-powered option; choose from the actual environment.

C003F or A300 — which data question fits?

C003F is not an industrial machine-data gateway. Choose A300 when validated machine fields are central to the brief.

Can C003F be installed in exposed outdoor conditions?

Protected installation only unless the exact enclosure rating and mounting conditions are confirmed.

05 / Project inquiry

Tell us which fleet signal matters next.

Share the fleet type, protected installation point, optional peripherals, target market, platform and quantity. We will reply with the checks still open.

Review the C003F FAQ

Ready to discuss the exact C003F configuration, market and quantity?

Discuss C003F pricing
