Start here / A18

Keep compact vehicle work visible.

A compact wired tracker for scooters, motorcycles and light vehicles that need location, ignition status and a basic route record.

Follow the checksDiscuss pricing

A18 is a compact wired tracker. Vehicle fit, wiring and the receiving platform are checked together before a project decision.

A18 compact wired 4G tracker for a motorcycle or light vehicle
A18Compact wired vehicle tracker

01 / When to choose

Does the vehicle need a compact wired baseline?

Start with space, supply and the daily question. Keep the technical list close, but let the operating fit lead.

Choose A18 when space and basic visibility lead the brief.

  • Scooters, motorcycles or light commercial vehicles are in scope.
  • Location, route history and ignition activity answer the daily question.
  • A protected in-vehicle position can fit a tight installation point.
  • 9–90 V wired power and a compact backup option fit the vehicle brief.
Pause / compare

Pause when the installation or data brief changes.

A18 is a compact wired tracker, not the starting point for exposed housing, unpowered assets or specialised field data. Compare the model whose conditions match the vehicle.

Selection is a project decision

02 / Daily answers

Turn the workday into three clear questions.

The page follows a small vehicle from installation space to the daily record the team needs.

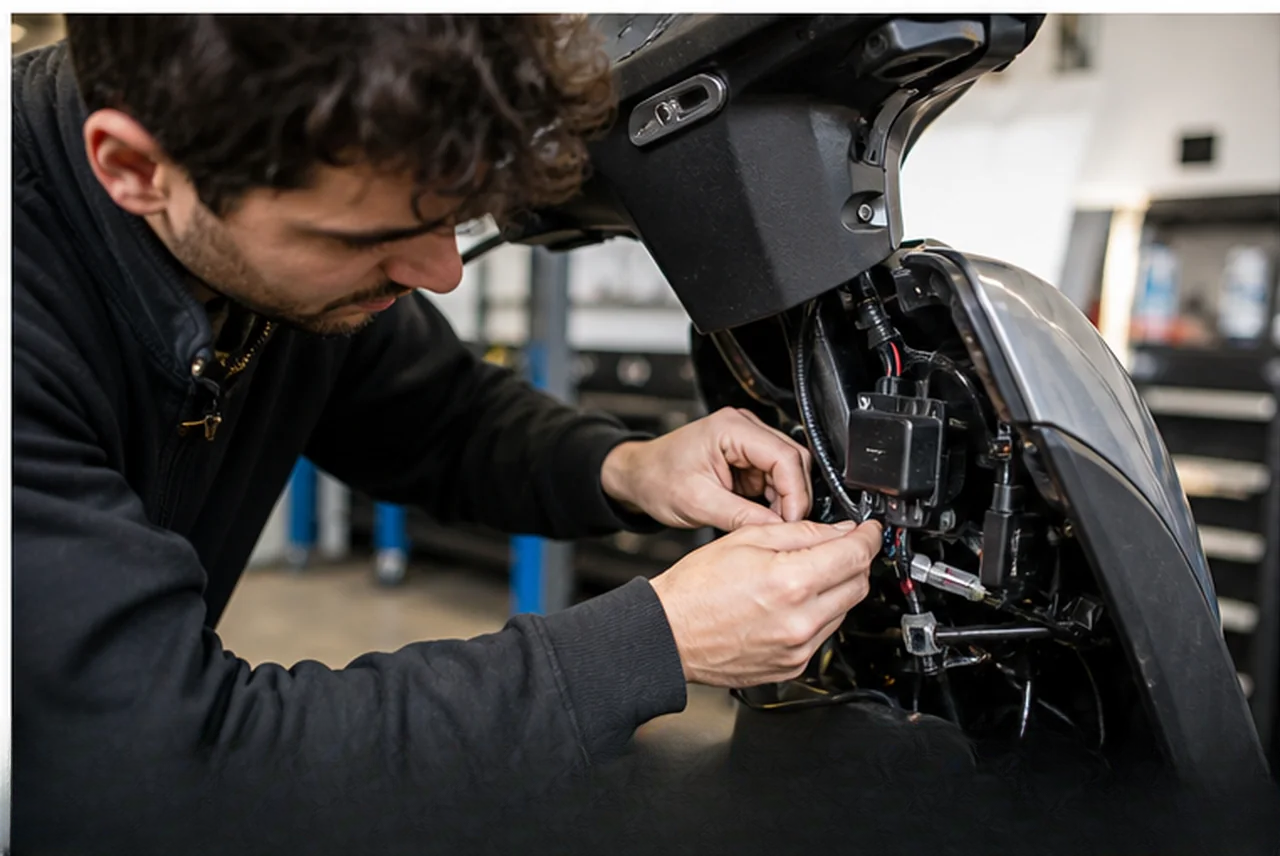

Technician checking a compact tracker installation on a light vehicle
01 / FIT

Can it fit the vehicle?

Compact wired mounting and 9–90 V are checked against the sample vehicle.

Light vehicle in daily use while ignition activity is reviewed
02 / RUN

When did it run?

ACC and activity records make ignition and use changes easier to review.

Scooters and light vehicles prepared for a consistent tracking baseline
03 / LOCATE

Where is the vehicle?

GPS / BDS / WiFi / LBS positioning gives a daily route record.

Last-mile delivery team working beside a light service vehicle
03 / Technical support follows the vehicle question, not the other way around.

03 / Technical support

Keep the useful details close to the fit decision.

A18 keeps the technical conversation close to space, supply and basic visibility. The list below brings the key product details together; exact configuration remains a project check.

4G CAT1Cellular configuration to confirm
GPS / BDS / WiFi / LBSGPS / BDS / WiFi / LBS positioning
9–90 V wiredVehicle supply to check
50 mAh backupVersion and vehicle behavior to confirm
ACC / remote cut-offBasic event path
Compact installationMounting space to confirm

Platform connection depends on the selected protocol, fields and receiving system and is confirmed per project.

Before ordering

Open the conditions before the vehicle enters a pilot.

Check the protocol, installation and destination-market requirements before order.

Light commercial vehicle being checked before a route
A compact fit depends on the deployment details.
01Protocol and platform still requested+
Share the required protocol, field list and API format so the receiving route can be confirmed for the selected configuration.
02Protected install until enclosure check+
Use a protected in-vehicle position while enclosure, sealing, cable exit and mounting remain a project check.
03Market marks and exact model+
Destination-market marks and exact A18 model coverage are requested and checked before order.
PRODUCT DETAILS

Specifications & order checks

Review the listed features and the points to confirm for the exact configuration, destination market and receiving platform.

Cellular
Verified4G LTE Cat-1.
Protocol
On requestSupplier documentation indicates JT/T808. We have not confirmed it against a firmware build, so it is treated as unconfirmed until the manufacturer states it in writing for the shipped version.
Platform integration
On requestWe have no hosted-platform deployment record for this model. Platforms ask for three things — device name, manufacturer reference and protocol documentation. We can supply those and submit the integration request with you.
Certification
On requestNo certificate on file lists A18 by name. Compliance documents are issued by the manufacturer per model and checked against the exact model number, radio module and antenna before quotation.
GNSS
VerifiedGPS / BeiDou with WiFi and LBS assistance.
Interfaces
VerifiedACC input and relay output for remote fuel or power cut-off; track playback supported. No bus or serial expansion listed.
Power
Verified9–90 V DC wired supply with a 50 mAh backup battery. 74 × 30 × 13 mm, 33 g.
Enclosure
On requestNo ingress rating is stated. The small 33 g body suits concealed mounting on two-wheelers; for wet or exposed positions compare GT02, which is rated IP67.
Firmware / FOTA
On requestNot stated in the material we hold. If remote updates matter, the update method, trigger and rollback behaviour are confirmed before order.
Traceability
On requestIMEI and serial list supplied with the shipment. The firmware build is recorded per purchase order and kept consistent within that order; a protocol or hardware change is notified before it ships. Batch and production records on request.
Commercial terms
Samples and small pilots available. Customisation typically from 100 units. 12-month limited warranty from the commercial-invoice shipment date; DOA terms confirmed in the quote.
Where it fits / where it doesn't
Motorcycles, scooters and light vehicles where size and concealment matter. Not for exposed outdoor mounting and not for machine data.

How to read these labels. Verified stated in the manufacturer’s datasheet and checked page by page against the original document — not our own measurement. Series a document on file covers the series but does not list this exact model number. On request not stated in the material we hold; confirmed per model with the manufacturer before quotation. Not held required in that market and not currently held. We would rather show you a gap than describe it vaguely.

04 / Before order

A guided compact-vehicle conversation.

The sample is where vehicle space, power, route questions and the receiving platform become one check.

01

Name the vehicle

Confirm the scooter, motorcycle or light vehicle and the available installation point.

02

Name the supply

Check 9–90 V, ACC wiring and the backup version against the exact vehicle.

03

Name the daily answer

Agree the location, route or ignition question and the receiving platform within the project.

04

What to confirm

Keep protocol, market marks, FOTA and traceability open until order confirmation.

Commercial starting point

Start small enough to learn.

Samples and small pilots keep the first conversation tied to the real vehicle.

Samples and small pilots availableCustomisation typically from 100 units12-month limited warranty from commercial-invoice shipment date

FAQ / A18

Keep the next compact-vehicle question obvious.

Talk through fit
A18 or GT02 — which starts the conversation?

A18 starts with compact wired basics and protected installation. GT02 starts with exposure; choose from the actual mounting conditions.

Can A18 connect to a sensor or machine system?

A18 is intended for basic vehicle visibility rather than expanded inputs. Move a specialised field-data question to a separate C003F or A300 project assessment.

Does the backup value promise long operation?

50 mAh is a capacity value, not a runtime promise. Confirm reporting cadence, vehicle behavior and the exact version with the sample.

Is A18 for exposed outdoor mounting?

Protected installation only unless the exact enclosure rating and mounting conditions are confirmed.

05 / Project inquiry

Tell us what the compact vehicle must answer.

Share the vehicle type, target market, available voltage, mounting space and the one daily answer you need. We will reply with the checks still open.

Review the A18 FAQ

Ready to discuss the exact A18 configuration, market and quantity?

Discuss A18 pricing
